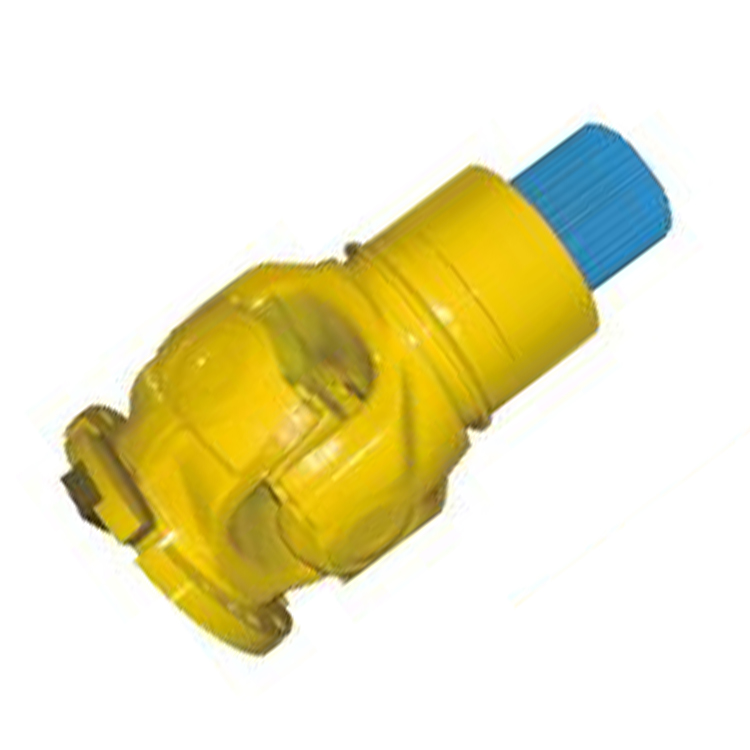

Best China manufacturer & factory Industry Heavy duty universal Shaft With high quality best price

We offer OEM service.

Overview

Quick Details

Warranty:

1 YEAR

Applicable Industries:

OEM

After Warranty Service:

Video technical support, Online support

Local Service Location:

none, United States

Showroom Location:

none

Material:

-, Steel

Coatings:

BLACK OXIDE

Torque Capacity:

Model Number:

Place of Origin:Zhejiang, China
Brand Name:

OEM

Color:

Yellow,orange

We get a lot of questions surrounding PTO shafts and how to attach them to your tractor. In today’s post, we’ll cover the basics of PTO, PTO Shafts, and PTO adapters for your tractor mounted implements. PTO stands for “Power Take-Off” and is the primary mechanism for providing power to an attachment or implement (such as a flail mower) via PTO shaft.By providing rotational energy through the driveshaft (or cardan shaft) a variety of tractor mounted implements can be operated by small and mid-sized tractors.

Packaging & Delivery

Packaging Details

EPG Machinery is located in XiHu Area HangZhou Zhejiang ,China. It is 30km from our factory to HangZhou international airport.

Port
Shanghai/Ningbo

Online Customization

Product Description

OUR GENERAL SEGMENT: APPLICATION-APPROPRIATE PRECISION

Series No. Lz+La Norminal Fatigue Rotation R Flange Deflection U-joint Appli-cation
torque torque angle
KN.m KN.m D D1 Df N-H Key Lm max. β
face
bxg
HDS180-2-1 640+60 20 10 180 180 155 105 6 15 7-24 95 10 Φ60X174
HDS180-2-2 752+155 20 10 180 180 155 105 6 15 7 24 95 10 Φ60X174
HDS180-2-3 830+170 20 10 180 180 155 105 6 15 7 24 95 10 Φ60X174
HDS200-2-1 730+70 31.5 16 200 200 175 125 8 15 8 28 110 10 Φ66X194
HDS200-2-2 823+70 31.5 16 200 200 175 125 8 15 8 28 110 10 Φ66X194
HDS200-2-3 950+190 31.5 16 200 200 175 125 8 15 8 28 110 10 Φ66X194
HDS200-3-1 850+120 31.5 16 200 225 196 125 8 17 Sep-32 108 10 Φ72X185
HDS225-2-1 690+70 40 20 225 225 196 135 8 17 N/A 125 15 Φ74X218
HDS225-2-2 830+76 40 20 225 225 196 135 8 17 Sep-32 125 10 Φ74X218
HDS225-2-3 850+120 40 20 225 225 196 135 8 17 N/A 125 15 Φ74X218
HDS225-2-4 933+76 40 20 225 225 196 135 8 17 Sep-32 125 10 Φ74X218
HDS225-2-5 950+140 40 20 225 225 196 135 8 17 N/A 125 10 Φ74X218
HDS225-2-6 1000+140 40 20 225 225 196 135 8 17 N/A 125 10 Φ74X218
HDS225-2-7 1875+620 40 20 225 225 196 135 8 17 N/A 125 10 Φ74X218
HDS225-3-1 1620+280 40 20 225 250 218 135 8 19 N/A 125 10 Φ74X218
HDS225-4-1 1020+220 40 20 225 225 196 135 8 17 N/A 130 10 Φ74X218
HDS225-4-2 1070+210 40 20 225 225 196 135 8 17 Sep-32 130 10 Φ74X218
HDS225-3-2 1000+140 40 20 225 250 218 135 8 19 N/A 130 10 Φ74X218
HDS225-3-3 850+120 40 20 225 285 245 135 8 21 40-15 130 10 Φ74X218
HDS250-2-1 680+50 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-2 700+50 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-3 705+55 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-4 710+60 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-5 715+65 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-6 720+70 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-7 725+70 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-8 730+70 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-9 735+50 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-10 740+90 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-11 745+100 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-12 750+100 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-2-13 905+110 63 31.5 250 250 218 150 8-18.1 40-12.5 130 12 Φ83X139
HDS250-3-1 860+80 63 31.5 250 250 218 150 8 19 40-12.5 135 10 Φ83X139
HDS250-3-2 978+80 63 31.5 250 250 218 150 8 19 40-12.5 135 10 Φ83X139
HDS250-3-3 1110+220 63 31.5 250 250 218 150 8 19 40-12.5 135 10 Φ83X139
HDS250-3-4 1550+400 63 31.5 250 250 218 150 8 19 40-12.5 135 10 Φ83X139
HDS250-4-1 905+50 63 31.5 250 285 218 150 8 19 40-12.5 135 10 Φ83X139
HDS250-4-2 905+100 63 31.5 250 285 218 150 8 19 40-12.5 135 10 Φ83X139
HDS250-4-3 940+150 63 31.5 250 315 280 150 10 23 40-12.5 150 10 Φ83X139
HDS250-4-4 1620+400 63 31.5 250 315 280 150 10 23 40-12.5 150 10 Φ83X139
HDS285-2-1 950+50 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-2 955+45 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-3 960+90 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-4 970+80 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-5 975+90 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-6 980+80 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-7 985+100 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-8 990+110 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-9 995+140 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-10 1000+135 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-11 810+50 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-12 1000+140 90 45 285 285 245 120

8 21

40-15 150 10 Φ95X160
HDS285-2-13 1133+100 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-2-14 1270+240 90 45 285 285 245 120 8 21 40-15 150 10 Φ95X160
HDS285-3-1 1000+140 90 45 285 315 280 120 10 23 N/A 150 10 Φ95X160
HDS285-3-2 1100+150 90 45 285 315 280 120 10 23 N/A 150 10 Φ95X160
HDS285-4-1 900+50 90 45 285 350 310 120 8-22.1 40-15 150 10 Φ95X160
HDS285-4-2 980+70 90 45 285 350 310 120 8-22.1 40-15 150 10 Φ95X160
HDS285-4-2 1000+140 90 45 285 350 310 120 8-22.1 40-15 150 10 Φ95X160
HDS315-2-1 985+80 126 63 315 315 280 185 10 23 40-15 170 10 Φ110X176
HDS315-2-3 1120+110 126 63 315 315 280 185 10 23 40-15 170 10 Φ110X176
HDS315-2-4 1250+110 126 63 315 315 280 185 10 23 40-15 170 10 Φ110X176
HDS315-2-2 1410+270 126 63 315 315 280 185 10 23 40-15 170 10 Φ110X176
HDS315-3-1 920+40 126 63 315 350 310 185 8-22.1 40-15 170 10 Φ110X176
HDS315-3-2 990+80 126 63 315 350 310 185 8-22.1 40-15 170 10 Φ110X176
HDS315-3-3 1100+100 126 63 315 350 310 185 8-22.1 40-15 170 10 Φ110X176
HDS350-2-1 1230+120 180 90 350 350 310 210 10 23 50-16 185 10 Φ120X196
HDS350-2-2 1380+120 180 90 350 350 310 210 10 23 50-16 185 10 Φ120X196
HDS350-2-3 1540+290 180 90 350 350 310 210 10 23 50-16 185 10 Φ120X196
HDS350-3-1 1100+150 180 90 350 390 345 210 10 25 70-18 185 10 Φ120X196

Related Products

Product packaging

Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.

We have exported many products to our customers all over the world, we have long-time experience and strong technology support.

Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN ,KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall

you also can check our website to know for more details, if you need our products catalogue, please contact with us.
